openvidu-react-native 🔗

1) You will need Node 8.3 ** or newer, NPM, React Native CLI** to serve the app. Install them with the following command

sudo curl -sL https://deb.nodesource.com/setup_14.x | sudo bash -
sudo apt-get install -y nodejs
sudo npm install -g react-native-cli

2) Clone the repo:

git clone https://github.com/OpenVidu/openvidu-tutorials.git -b v2.20.0

3) Install dependencies

cd openvidu-tutorials/openvidu-react-native
npm install

4) Install openvidu-react-native-adapter which include openvidu-browser with React Native support: Add the artifact in the root project

npm install openvidu-react-native-adapter-Y.Y.Z.tgz

4) Start Metro Bundler :

npm start

Now depending on the platform you want to run your app...

In an Android device 🔗

To deploy the Android APK not only you need to have Java JDK8, Android Studio and Android SDK installed but also you have to set up the specific environment variables. Fortunately, React Native provide us a great guide to allows us to configure step by step all the requirements. This tutorial is made with React Native CLI Quickstart so you should select and check the React Native CLI requirements inside of React guide website.

After we have completed all the steps of the React Native CLI guide and performed steps 1) , 2), 3) and 4) stated above, we must continue with the following commands:

5) Connect the device to the PC. You must enable USB debugging and give permissions (check out first section here in React Native docs)

6) Run the tutorial. The app will be automatically launched in your Android device

# In openvidu-tutorials/openvidu-react-native
react-native run-android

In an iOS device 🔗

After we have completed all the steps of the performed steps 1), 2) and 3) stated above, we must continue with the following commands:

5) Install pod dependencies

cd ios
pod update

6) Plug in your device via USB

7) Configure code signing

8) Build and Run your app

To deploy the iOS app React has this guide to properly configure your development environment.

Understanding the code 🔗

This is a React Native project generated with React Native CLI tool, and therefore you will see lots of configuration files and other stuff that doesn't really matter to us. We will focus on the following files under App.js file:

• App.js: defines App component, main component of the app. It contains the functionalities for joining a video-call and for handling the video-calls themselves.

Let's see first how App.js uses NPM package openvidu-react-native-adapter:

We import the necessary objects from openvidu-react-native-adapter: 🔗

import { OpenViduReactNativeAdapter, OpenVidu, RTCView } from 'openvidu-react-native-adapter';

openvidu-react-native-adapter exports the entire openvidu-browser and react-native-webrtc modules.

We must initialize openvidu-react-native-adapter in the App constructor: 🔗

constructor(props) {
    super(props);

    const ovReact = new OpenViduReactNativeAdapter();
    ovReact.initialize();

    ...
}

App.js declares the following properties in the state: 🔗

this.state = {
    mySessionId: 'SessionReactNative',
    myUserName: 'Participant' + Math.floor(Math.random() * 100),
    session: undefined,
    mainStreamManager: undefined,
    publisher: undefined,
    subscribers: [],
    role: 'PUBLISHER',
};

OpenVidu object will allow us to get a Session object, which is declared just after it. publisher will be our own local webcam stream and subscribers array will store the active streams of other users in the video-call. Finally, mySessionId and myUserName params simply represent the video-call and your participant's nickname, as you will see in a moment.

Whenever a user clicks on the join button defined in App.js, joinSession() method is called: 🔗

We first get an OpenVidu object and initialize a session property inside the state.

// --- 1) Get an OpenVidu object ---

this.OV = new OpenVidu();

// --- 2) Init a session ---

this.setState({
    session: this.OV.initSession(),
    }, () => {
        // See next step
    }
);

Then we subscribe to the Session events that interest us.

// --- 3) Specify the actions when events take place in the session ---


var mySession = this.state.session;

// On every new Stream received...
 mySession.on('streamCreated', async (event) => {
    // Subscribe to the Stream to receive it. Second parameter is undefined
    // so OpenVidu doesn't create an HTML video by its own
    const subscriber = await mySession.subscribeAsync(event.stream, undefined);
    var subscribers = Array.from(this.state.subscribers);
    subscribers.push(subscriber);
    // Update the state with the new subscribers
    this.setState({
        subscribers: subscribers,
    });
});

    // On every Stream destroyed...
mySession.on('streamDestroyed', (event) => {
    event.preventDefault();

    // Remove the stream from 'subscribers' array
    this.deleteSubscriber(event.stream.streamManager);
});

// On every asynchronous exception...
mySession.on('exception', (exception) => {
    console.warn(exception);
});

// See next step

Here we subscribe to the Session events that interest us. As we are using React Native framework, a good approach for managing the remote media streams is to loop across an array of them, feeding a common component with each Subscriber object and let it manage its video. This component will be RTCView and is provided from react-native-webrtc library. To do this, we need to store each new Subscriber we received in array subscribers, and we must remove from it every deleted subscriber whenever it is necessary. To achieve this, we use the following events:

• streamCreated: for each new Stream received by the Session object, we subscribe to it and store the returned Subscriber object in our subscribers array. Method session.subscribe has undefined as second parameter so OpenVidu doesn't insert and HTML video element in the DOM due to, as it is a native application, the DOM does not exist. The render method of App.js will show the new video, as it contains a .map js function, declaring a RTCView for each subscriber. We assign the MediaStream URL to the streamURL RTCView property.

• exception: event triggered by Session object when an asynchronous unexpected error takes place on the server-side

{this.state.subscribers.map((item, index) => {
    return(
        <View key={index}>
            <Text>{this.getNicknameTag(item.stream)}</Text>
            <RTCView
                accessibilityLabel="remoteVideo"
                zOrder={0}
                objectFit="cover"
                style={styles.remoteView}
                streamURL={item.stream.getMediaStream().toURL()}
            />
        </View>
    );
})}

• streamDestroyed: for each Stream that has been destroyed from the Session object (which means a user has left the video-call), we remove the associated Subscriber from subscribers array, so React will automatically delete the required RTCView component.

Get a token from OpenVidu Server 🔗

// --- 4) Connect to the session with a valid user token ---

// 'getToken' method is simulating what your server-side should do.
// 'token' parameter should be retrieved and returned by your own backend
this.getToken().then((token) => {
    // See next point to see how to connect to the session using 'token'
});

Now we need a token from OpenVidu Server. In a production environment we would perform this operations in our application backend, by making use of the REST API, OpenVidu Java Client or OpenVidu Node Client. Here we have implemented the POST requests to OpenVidu Server in a method getToken() that returns a Promise with the token, using fetch library. Without going into too much detail, this method performs two POST requests to OpenVidu Server, passing OpenVidu Server secret to authenticate them:

• First request performs a POST to /openvidu/api/sessions (we send a customSessionId field to name the session with our mySessionId value retrieved from HTML input)
• Second request performs a POST to /openvidu/api/sessions/<sessionId>/connection (the path requires the sessionId to assign the token to this same session)

You can inspect this method in detail in the GitHub repo.

Connect to the session: 🔗

// --- 4) Connect to the session with a valid user token ---

// 'getToken' method is simulating what your server-side should do.
// 'token' parameter should be retrieved and returned by your own backend
this.getToken().then((token) => {
    // First param is the token got from OpenVidu Server. Second param can be retrieved by every user on event
    // 'streamCreated' (property Stream.connection.data), and will be appended to DOM as the user's nickname
    mySession.connect(token, { clientData: this.state.myUserName })
        .then(async () => {
            if (Platform.OS == 'android') {
                this.checkAndroidPermissions();
            }

            // --- 5) Get your own camera stream ---
            if (this.state.role !== 'SUBSCRIBER') {
                // Init a publisher passing undefined as targetElement (we don't want OpenVidu to insert a video
                // element: we will manage it on our own) and with the desired properties
                let publisher = await this.OV.initPublisherAsync(undefined, {
                    audioSource: undefined, // The source of audio. If undefined default microphone
                    videoSource: undefined, // The source of video. If undefined default webcam
                    publishAudio: true, // Whether you want to start publishing with your audio unmuted or not
                    publishVideo: true, // Whether you want to start publishing with your video enabled or not
                    resolution: '640x480', // The resolution of your video
                    frameRate: 30, // The frame rate of your video
                    insertMode: 'APPEND', // How the video is inserted in the target element 'video-container'
                });

                // --- 6) Publish your stream ---

                // Set the main video in the page to display our webcam and store our Publisher
                this.setState({
                    mainStreamManager: publisher
                });
                mySession.publish(publisher);
            }

        })
        .catch((error) => {
            console.log('There was an error connecting to the session:', error.code, error.message);
        });
    })
    .catch((error) => console.log('Error', error));

In session.connect method first param is the recently retrieved user token. Second param is the value every user will receive in event.stream.connection.data property on streamCreated event. (this value will be used to show the user's nickname to the his video).

If the method succeeds we will call to checkAndroidPermissions() method. This method requests and checks the device permissions that our app currently has in the device. Once the permissions have been resolved, the OV.initPublisher() method will be called. For iOS and web platforms, permissions will be handled automatically when camera and microphone access are requested. No need for extra steps in these cases, so we directly initialize our Publisher object.

We do further talk about Android permissions under section Android specific requirements.

Finally publish your webcam calling OV.initPublisher() method: 🔗

let publisher = await this.OV.initPublisherAsync(undefined, {
    audioSource: undefined, // The source of audio. If undefined default microphone
    videoSource: undefined, // The source of video. If undefined default webcam
    publishAudio: true, // Whether you want to start publishing with your audio unmuted or not
    publishVideo: true, // Whether you want to start publishing with your video enabled or not
    resolution: '640x480', // The resolution of your video
    frameRate: 30, // The frame rate of your video
    insertMode: 'APPEND', // How the video is inserted in the target element 'video-container'
});

// --- 6) Publish your stream ---

// Set the main video in the page to display our webcam and store our Publisher
this.setState({
    mainStreamManager: publisher
});
mySession.publish(publisher);

We now proceed to publish our webcam to the session. To do so we get a Publisher object with the desired properties and publish it to the Session through Session.publish() method. The rest of users will receive our Stream object and will execute their streamCreated event.

Also we store the Publisher object under this.state.mainStreamManager variable. This way our webcam will be appended along all remote subscribers, in exactly the same way they are shown.

<View style={styles.container}>
    <Text>Session: {this.state.mySessionId}</Text>
    <Text>{this.getNicknameTag(this.state.mainStreamManager.stream)}</Text>
    <RTCView
        zOrder={0}
        objectFit="cover"
        streamURL={this.state.mainStreamManager.stream.getMediaStream().toURL()}
        style={styles.selfView}
    />
</View>

Leaving the session 🔗

Whenever we want a user to leave the session, we just need to call session.disconnect method in app.component.ts:

leaveSession() {
    // --- 7) Leave the session by calling 'disconnect' method over the Session object ---

    const mySession = this.state.session;

    if (mySession) {
        mySession.disconnect();
    }

    // Empty all properties...
    this.OV = null;
    this.setState({
        session: undefined,
        subscribers: [],
        mySessionId: 'SessionReactNative',
        myUserName: 'Participant' + Math.floor(Math.random() * 100),
        mainStreamManager: undefined,
        publisher: undefined,
    });
}

Android specific requirements 🔗

Android apps need to actively ask for permissions in the code to access camera and microphone using react-native-webrtc plugin. By following steps below we have been able to properly set up the optimal configuration your React Native app will need to work along OpenVidu.

These configurations are already included in this openvidu-react-native project, so if you start from here no further configurations are needed. Otherwise, if you want to start a new project with React Native and OpenVidu, you should follow these simple steps:

1) In android/app/src/main/AndroidManifest.xml add these permissions

<uses-permission android:name="android.permission.CAMERA" />
<uses-feature android:name="android.hardware.camera" />
<uses-feature android:name="android.hardware.camera.autofocus"/>

<uses-permission android:name="android.permission.ACCESS_NETWORK_STATE"/>
<uses-permission android:name="android.permission.MODIFY_AUDIO_SETTINGS" />
<uses-permission android:name="android.permission.RECORD_AUDIO" />
<uses-permission android:name="android.permission.WAKE_LOCK" />
<uses-permission android:name="android.permission.WRITE_EXTERNAL_STORAGE"/>

2) In android/settings.gradle, include WebRTCModule

include ':WebRTCModule', ':app'
project(':WebRTCModule').projectDir = new File(rootProject.projectDir, '../node_modules/react-native-webrtc/android')

3) In android/app/build.gradle, add WebRTCModule to dependencies

dependencies {
    implementation project(':WebRTCModule')
    ...
}

4) In android/app/src/main/java/com/xxx/MainApplication.java import and add WebRTCModulePackage:

If you are using a version prior to 0.60.0:

import com.oney.WebRTCModule.WebRTCModulePackage;

...

@Override
protected List<ReactPackage> getPackages() {
    return Arrays.<ReactPackage>asList(
        new MainReactPackage(),
        new WebRTCModulePackage() // <-- Add this line
    );
}

If you are using a version above to 0.60.0:

import com.oney.WebRTCModule.WebRTCModulePackage;

....

@Override
    protected List<ReactPackage> getPackages() {
      @SuppressWarnings("UnnecessaryLocalVariable")
      List<ReactPackage> packages = new PackageList(this).getPackages();
      // Packages that cannot be autolinked yet can be added manually here, for example:
      // packages.add(new MyReactNativePackage());
      packages.add(new WebRTCModulePackage()); // <-- Add this line
      return packages;
    }

iOS specific requirements 🔗

iOS apps need to include the WebRTC modules from react-native-webrtc plugin. We will do it by following the steps bellow.

These configurations are already included in this openvidu-react-native project, so if you start from here no further configurations are needed. Otherwise, if you want to start a new project with React Native and OpenVidu, you should follow these simple steps:

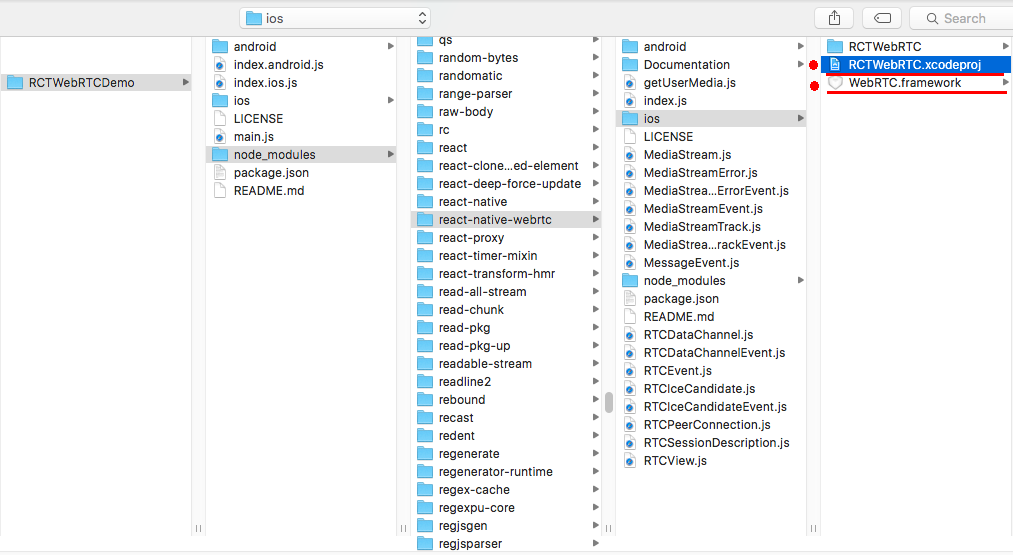

1) Add these files into your project

• in Xcode: Right click on Libraries and Add Files to {project}
• Go to node_modules/react-native-webrtc/ios/RCTWebRTC.xcodeproj and click on Add
• Also add node_modules/react-native-webrtc/ios/WebRTC.framework to Frameworks folder

2) iOS Podfile

You can use the included podspec in your podfile to take care of all dependencies instead of manually adding files to the project. If you prefer to add it manually, you should check the official tutorial.

Include in the Podfile in your react-native iOS directory:

pod 'react-native-webrtc', :path => '../node_modules/react-native-webrtc'

You may have to change the platform field in your Podfile, as react-native-webrtc doesn't support iOS 9 - set it to '10.0' or above (otherwise you get an error when doing pod install):

platform :ios, '10.0'

3) Set up parameters

Under Build setting set Dead Code Stripping to No also under Build Options set Enable Bitcode to No as well

4) Add Permissions * Navigate to <ProjectFolder>/ios/<ProjectName>/ * Edit Info.plist and add the following lines

<key>NSCameraUsageDescription</key>
<string>Camera Permission</string>
<key>NSMicrophoneUsageDescription</key>
<string>Microphone Permission</string>

5) Install pod

You will install the Podfile that we have set up in step 2:

cd ios
pod install
