openvidu-recording-java 🔗

Check it on GitHub

An OpenVidu application with a Java backend and a plain JS/HTML/CSS frontend. It makes use of openvidu-java-client SDK to communicate with the OpenVidu deployment. This application demonstrates OpenVidu recording capabilities. It is highly recommended to have read Recording documentation before diving into the tutorial.

Running this tutorial 🔗

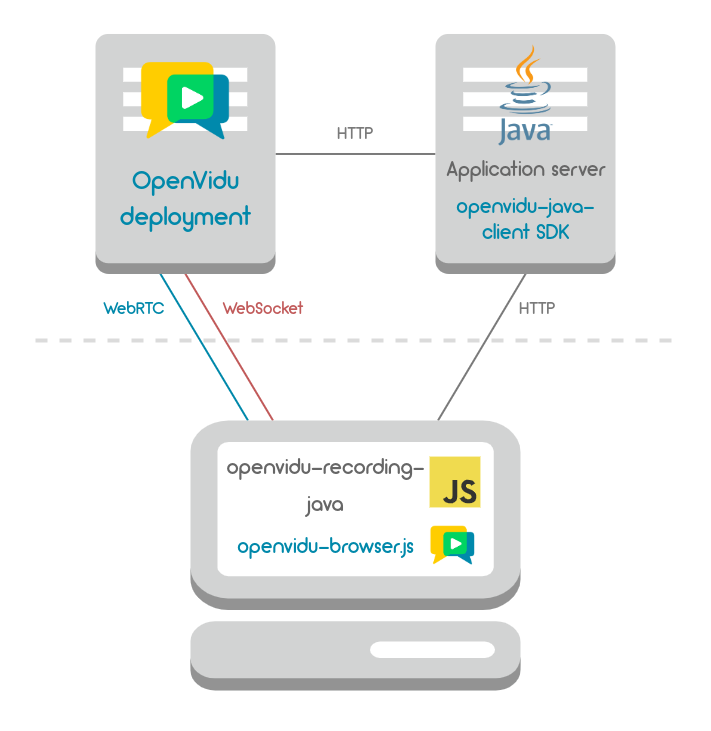

To run the tutorial you need the three components stated in OpenVidu application architecture: an OpenVidu deployment, your server application and your client application. In this order:

1. Run OpenVidu deployment 🔗

Using Docker Engine:

# WARNING: this container is not suitable for production deployments of OpenVidu
# Visit https://docs.openvidu.io/en/stable/deployment

docker run -p 4443:4443 --rm \
    -e OPENVIDU_SECRET=MY_SECRET \
    -e OPENVIDU_RECORDING=true \
    -e OPENVIDU_RECORDING_PATH=/opt/openvidu/recordings \
    -v /var/run/docker.sock:/var/run/docker.sock \
    -v /opt/openvidu/recordings:/opt/openvidu/recordings \
openvidu/openvidu-dev:2.29.0

Check out the additional configuration properties and volumes you must set in the docker run command for the recording to work. If you let the default value /opt/openvidu/recordings/ as OPENVIDU_RECORDING_PATH, make sure the docker container has write permissions on it.

2. Run the server application and the client application 🔗

You need Java and Maven. Check them with:

java --version
mvn --version

Clone the repo:

git clone https://github.com/OpenVidu/openvidu-tutorials.git -b v2.29.0

Run the application:

cd openvidu-tutorials/openvidu-recording-java
mvn package exec:java

Go to https://localhost:5000 to test the app once the server is running. To test two different users in the same computer, use a standard window and an incognito window.

To test the application with other devices in your network, visit this FAQ. On step 1 add the additional flags to activate the recording module as explained above. And ignore step 2 and step 3, as the application already includes a backend and the frontend doesn't need to communicate with a different application server.

Understanding the code 🔗

This is an application with a JS/HTML/CSS frontend and a straightforward Java backend that serves HTML files, building the templates with the help of Thymeleaf.

This application provides the:

  • Backend: SpringBoot app with the following classes (src/main/java path, io.openvidu.recording.java package)

    • App.java : entrypoint for the app
    • MyRestController.java : controller for managing the token to enter the OpenVidu Session

  • Frontend templates: Plain JS/HTML/CSS files served by the backend (src/main/resources/templates)

    • index.html : template with the recording features

  • Frontend static files (src/main/resources/static)

    • openvidu-browser-VERSION.js : openvidu-browser library. You don't have to manipulate this file
    • style.css : some CSS classes to style the templates

Although this tutorial includes several methods to make the backend-frontend communication effective, we will focus on the recording features. The application shows how to manage the recordings using the OpenVidu Recording API provided by openvidu-java-client.

1) Start the recording: 🔗

@RequestMapping(value = "/recording/start", method = RequestMethod.POST)
public ResponseEntity<?> startRecording(@RequestBody String param) throws ParseException {
    JSONObject json = (JSONObject) new JSONParser().parse(param);

    String sessionId = (String) json.get("session");
    Recording.OutputMode outputMode = Recording.OutputMode.valueOf((String) json.get("outputMode"));
    boolean hasAudio = (boolean) json.get("hasAudio");
    boolean hasVideo = (boolean) json.get("hasVideo");

    RecordingProperties properties = new RecordingProperties.Builder().outputMode(outputMode).hasAudio(hasAudio)
            .hasVideo(hasVideo).build();

    try {
        Recording recording = this.openVidu.startRecording(sessionId, properties);
        this.sessionRecordings.put(sessionId, true);
        return new ResponseEntity<>(recording, HttpStatus.OK);
    } catch (OpenViduJavaClientException | OpenViduHttpException e) {
        return new ResponseEntity<>(e.getMessage(), HttpStatus.BAD_REQUEST);
    }
}

2) Stop the recording: 🔗

@RequestMapping(value = "/recording/stop", method = RequestMethod.POST)
public ResponseEntity<?> stopRecording(@RequestBody String param) throws ParseException {
    JSONObject json = (JSONObject) new JSONParser().parse(param);
    String recordingId = (String) json.get("recording");

    try {
        Recording recording = this.openVidu.stopRecording(recordingId);
        this.sessionRecordings.remove(recording.getSessionId());
        return new ResponseEntity<>(recording, HttpStatus.OK);
    } catch (OpenViduJavaClientException | OpenViduHttpException e) {
        return new ResponseEntity<>(e.getMessage(), HttpStatus.BAD_REQUEST);
    }
}

3) Get a recording: 🔗

@RequestMapping(value = "/recording/get/{recordingId}", method = RequestMethod.GET)
public ResponseEntity<?> getRecording(@PathVariable(value = "recordingId") String recordingId) {

    try {
        Recording recording = this.openVidu.getRecording(recordingId);
        return new ResponseEntity<>(recording, HttpStatus.OK);
    } catch (OpenViduJavaClientException | OpenViduHttpException e) {
        return new ResponseEntity<>(e.getMessage(), HttpStatus.BAD_REQUEST);
    }
}

4) List the recording: 🔗

@RequestMapping(value = "/recording/list", method = RequestMethod.GET)
public ResponseEntity<?> listRecordings() {

    try {
        List<Recording> recordings = this.openVidu.listRecordings();

        return new ResponseEntity<>(recordings, HttpStatus.OK);
    } catch (OpenViduJavaClientException | OpenViduHttpException e) {
        return new ResponseEntity<>(e.getMessage(), HttpStatus.BAD_REQUEST);
    }
}

5) Delete the recording: 🔗

@RequestMapping(value = "/recording/delete", method = RequestMethod.DELETE)
public ResponseEntity<?> deleteRecording(@RequestBody String param) throws ParseException {
    JSONObject json = (JSONObject) new JSONParser().parse(param);
    String recordingId = (String) json.get("recording");

    try {
        this.openVidu.deleteRecording(recordingId);
        return new ResponseEntity<>(HttpStatus.OK);
    } catch (OpenViduJavaClientException | OpenViduHttpException e) {
        return new ResponseEntity<>(e.getMessage(), HttpStatus.BAD_REQUEST);
    }
}

Deploying openvidu-recording-java 🔗

1) Build the docker image 🔗

Under the root project folder, you can see the openvidu-recording-java/docker/ directory. Here it is included all the required files yo make it possible the deployment with OpenVidu.

First of all, you will need to create the openvidu-recording-java docker image. Under openvidu-recording-java/docker/ directory you will find the create_image.sh script. This script will create the docker image with the openvidu-recording-java server and the static files.

./create_image.sh openvidu/my-openvidu-recording-java-demo:X.Y.Z

This script will create an image named openvidu/my-openvidu-recording-java-demo:X.Y.Z. This name will be used in the next step.

2) Deploy the docker image 🔗

Time to deploy the docker image. You can follow the Deploy OpenVidu based application with Docker guide for doing this.
